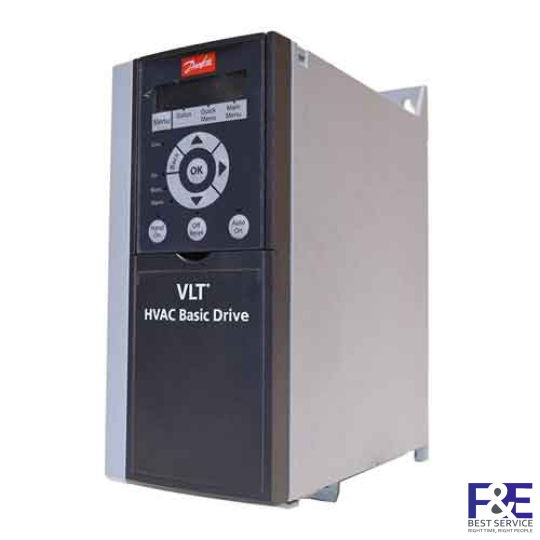

Biến tần Danfoss FC-101P90KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX
SKU: 131N0222
Hãng sản xuất: Danfoss
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO, CQ, hóa đơn VAT
| Manufacturer: | Danfoss |
| Series: | VLT HVAC BasicDrive FC 101 |
| Model: | FC-101P90KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX |
| Product Code: | 131N0222 |
| Application: | pumps |
| Capacity, kW: | 90 |
| Current, A: | 177 |
| Main power supply, V: | 380-480 |
| Phase: | 3 |
| Output frequency, Hz: | 0-400 |
| Enclosure: | IP54 |
| Acceleration time, sec: | 1-3600 |
| Deceleration time, sec: | 1-3600 |
| EMC filter: | RFI Class A1/B (reduced cable length) (C1) |
| Analog input: | 2 |
| Digital input: | 4 |
| Analog output: | 2 |
| RS485 (Modbus RTU): | BACnet, Modbus RTU, N2 Metasys, FLN Apogee, FC Protocol |
| PID: | PI – controller |
| V/f control mode: | + |
| Operation temperature, °C: | -20…..+50 |
| Storage temperature, °C: | -30…..+70 |
| Dimensions (W x H x D), mm: | 370x770x335 |
| Weight, kg: | 65 |
| Models | Công suất (kW) | Dòng chịu tải (A) |
|---|---|---|
| FC-101PK37T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 0.37 | 1.2 |
| FC-101PK75T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 0.75 | 2.2 |
| FC-101P1K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 1.5 | 3.7 |
| FC-101P2K2T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 2.2 | 5.3 |
| FC-101P3K0T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 3 | 7.2 |
| FC-101P4K0T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 4 | 9 |
| FC-101P5K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 5.5 | 12 |
| FC-101P7K5T4E20H4XXCXXXSXXXXAXBXCXXXXDX | 7.5 | 15.5 |
| FC-101P11KT4E20H4XXCXXXSXXXXAXBXCXXXXDX | 11 | 23 |
| FC-101P15KT4E20H4XXCXXXSXXXXAXBXCXXXXDX | 15 | 31 |
| FC-101P18KT4E20H4XXCXXXSXXXXAXBXCXXXXDX | 18.5 | 37 |
| FC-101P22KT4E20H4XXCXXXSXXXXAXBXCXXXXDX | 22 | 43 |
| FC-101PK75T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 0.75 | 2.2 |
| FC-101P1K5T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 1.5 | 3.7 |
| FC-101P2K2T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 2.2 | 5.3 |
| FC-101P3K0T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 3 | 7.2 |
| FC-101P4K0T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 4 | 9 |
| FC-101P5K5T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 5.5 | 12 |
| FC-101P7K5T4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 7.5 | 15.5 |
| FC-101P11KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 11 | 23 |
| FC-101P15KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 15 | 31 |
| FC-101P18KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 18.5 | 37 |
| FC-101P22KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 22 | 43 |
| FC-101P30KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P37KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P45KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P55KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P75KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P90KT4E5AH2XAXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101PK75T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 0.75 | 2.2 |
| FC-101P1K5T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 1.5 | 3.7 |
| FC-101P2K2T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 2.2 | 5.3 |
| FC-101P3K0T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 3 | 7.2 |
| FC-101P4K0T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 4 | 9 |
| FC-101P5K5T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 5.5 | 12 |
| FC-101P7K5T4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 7.5 | 15.5 |
| FC-101P11KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 11 | 23 |
| FC-101P15KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 15 | 31 |
| FC-101P18KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 18.5 | 37 |
| FC-101P22KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 22 | 43 |
| FC-101P30KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P37KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P45KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P55KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P75KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P90KT4E5AH3XAXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101P30KT4E20H2XXXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P30KT4E20H3XXXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P37KT4E20H2XXXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P37KT4E20H3XXXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P45KT4E20H2XXXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P45KT4E20H3XXXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P55KT4E20H2XXXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P55KT4E20H3XXXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P75KT4E20H2XXXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P75KT4E20H3XXXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P90KT4E20H2XXXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101P90KT4E20H3XXXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101P30KT4P20H2XXXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P30KT4P20H3XXXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P37KT4P20H2XXXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P37KT4P20H3XXXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P45KT4P20H2XXXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P45KT4P20H3XXXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P55KT4P20H2XXXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P55KT4P20H3XXXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P75KT4P20H2XXXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P75KT4P20H3XXXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P90KT4P20H2XXXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101P90KT4P20H3XXXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101P22KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 22 | 43 |
| FC-101P22KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 22 | 43 |
| FC-101P30KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P30KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 30 | 61 |
| FC-101P37KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P37KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 37 | 73 |
| FC-101P45KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P45KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 45 | 90 |
| FC-101P55KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P55KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 55 | 106 |
| FC-101P75KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P75KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 75 | 147 |
| FC-101P90KT4P5AH2XAXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| FC-101P90KT4P5AH3XAXXXXSXXXXAXBXCXXXXDX | 90 | 177 |
| Thương hiệu | Danfoss |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Công suất | 90kW |
| Điện áp ngõ vào | 3 Pha 380V |
| Điện áp ngõ ra | 3 Pha 380V |
| Series | Danfoss FC-101 |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
