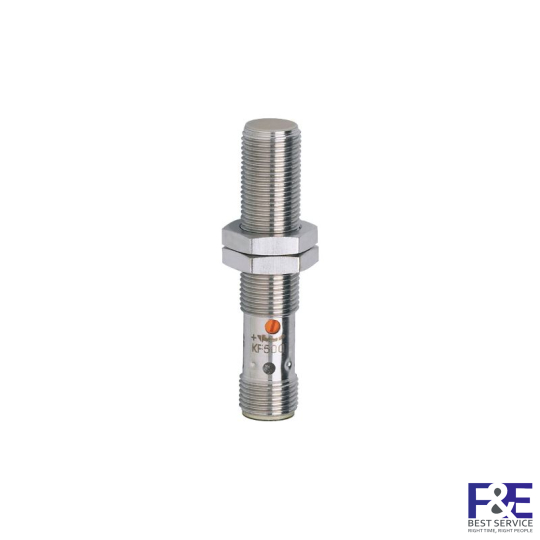

Cảm biến điện dung IFM KF5001
SKU: KF5001
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Product characteristics | |||
|---|---|---|---|
| Electrical design | PNP | ||
| Output function | normally open | ||
| Sensing range [mm] | 1…6 | ||
| Housing | threaded type | ||
| Dimensions [mm] | M12 x 1 / L = 60 | ||
| Application | |||
| Media | dry bulk material; liquids | ||
| Electrical data | |||
| Operating voltage [V] | 10…36 DC; (“supply class 2” to cULus) | ||
| Current consumption [mA] | < 12 | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | normally open | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 100 | ||
| Switching frequency DC [Hz] | 50 | ||
| Short-circuit proof | yes | ||
| Overload protection | yes | ||
| Detection zone | |||
| Sensing range [mm] | 1…6 | ||
| Sensing range adjustable | yes | ||
| Factory setting sensing range [mm] | 4 | ||
| Real sensing range Sr [mm] | 4 ± 10 % | ||
| Accuracy / deviations | |||
| Correction factor | glass: 0.6 / water: 1 / ceramics: 0.5 / PVC: 0.4 | ||
| Hysteresis [% of Sr] | 1…15 | ||
| Switch point drift [% of Sr] | -20…20 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25…70 | ||
| Protection | IP 65 | ||
| Increased immunity | yes | ||
| Mechanical data | |||
| Weight [g] | 38.9 | ||
| Housing | threaded type | ||
| Mounting | flush mountable | ||
| Dimensions [mm] | M12 x 1 / L = 60 | ||
| Thread designation | M12 x 1 | ||
| Materials | stainless steel (1.4404 / 316L); PEEK | ||
| Displays / operating elements | |||
| Display |
| ||
| Accessories | |||
| Accessories (supplied) |
| ||
| Remarks | |||
| Pack quantity | 1 pcs. | ||
| Electrical connection – plug | |||
| Connection | Connector: 1 x M12 | ||
| Thương hiệu | IFM |
|---|---|
| Thời gian bảo hành | 5 Năm |
| Điện áp ngõ vào | 12V, 24V, 36V |
| Ngõ ra | NO, PNP |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
