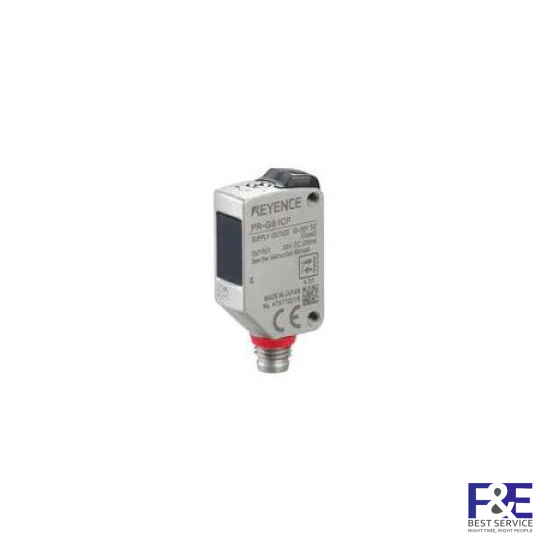

Cảm biến quang Keyence PR-G61C3PD
SKU: PR-G61C3PD
Hãng sản xuất: Keyence
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Model | PR-G61C3PD | |||
| Type | Retro-reflective | |||
| Shape | Rectangular | |||
| Output | PNP | |||
| Cable connection | M8 connector (3 pin) | |||
| Detecting distance | 0.1 to 4.2 m 0.3′ to 13.8′ (when using R-2L) | |||
| Number of control outputs | 2 (Dark-ON +Light ON)*1 | |||
| Output operation | Output 1 | Dark-ON | ||
| Output 2 | ― | |||
| Response time | 0.5 ms | |||
| Sensitivity adjustment | Five-turn trimmer | |||
| Spot diameter | ― | |||
| Light source | 4 elements, Red LED (630 nm) | |||
| Light interference prevention function | 2 | |||
| Indicator lamp | 7 segment display (0 to 999), output indicator (yellow) | |||
| Control output | PNP open collector 30 VDC or less, 100 mA or less Residual voltage: 1.2 V or less at less than 10 mA, 2 V or less at 10 to 100 mA | |||
| Stop emission input | ― | |||
| Protection circuit | Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection | |||
| Rating | Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % | ||
| Power consumption | 450 mW max. (15 mA max. at 24 V, 21 mA max. at 12 V) | |||
| Environmental resistance | Enclosure rating | IP68 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250)*2 | ||
| Insulation resistance | 20 MΩ or more (500 VDC) | |||
| Ambient light | Incandescent lamp: 5,000 lux or less, Sunlight: 20,000 lux or less | |||
| Ambient temperature | -20 to +70 °C -4 to 158 °F (No freezing)*3 | |||
| Storage temperature | -20 to +70 °C -4 to 158 °F | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Withstand voltage | 1,000 VAC, 50/60 Hz, 1 min | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions | |||
| Material | Case: SUS 316L, Indicator cover: PES, 7-segment display cover/Lens cover: PMMA (scratch-resistant coating) M18 nut: Brass (Nickel plating), Lock washer: Steel (Chrome plating) | |||
| Accessories | Instruction manual | |||
| Weight | Approx. 25 g | |||
| *1 For the threaded mount type sensors, the outputs are 1 NPN output and 1 PNP output. *2 For the connector type, the enclosure rating varies depending on the cable that is used. *3 When the ambient temperature is 60 °C 140 °F or higher, the device should be powered with no more than 24 VDC and 50 mA. | ||||
| Thương hiệu | Keyence |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Series | Keyence PR-G |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
