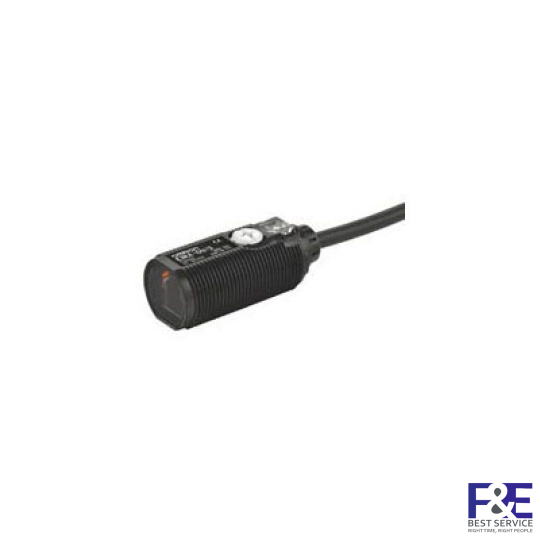

Cảm biến quang Omron E3FA-DP11 2M (phản xạ khuếch tán)
Mã sản phẩm: E3FA-DP11 2M
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm)
| Nguồn cấp | 10…30VDC |
| Phương pháp phát hiện | Thu-phát chung |
| Khoảng cách phát hiện | 100mm |
| Loại đầu ra | PNP |
| Chế độ hoạt động | Dark ON, Light ON |
| Phụ kiện đi kèm | Nuts |
| Phụ kiện mua rời | Bracket: E39-L182, Bracket: E39-L183 |
| Loại | Cảm biến quang tiêu chuẩn (tích hợp bộ khuếch đại) |
| Hình dáng | Hình trụ có ren |
| Nguyên lý phát hiện | Diffuse |
| Đối tượng phát hiện | Vật mờ, đục |
| Kích thước vật phát hiện tiêu chuẩn | 300×300mm |
| Nguồn sáng | LED đỏ |
| Cài đặt độ nhạy | Có thể điều chỉnh |
| Thời gian đáp ứng | 0.5ms |
| Kiểu hiển thị Chức năng | Hiển thị LED |
| Mạch bảo vệ | Output reverse polarity protection, Output short-circuit protection, Power supply reverse polarity protection […] |
| Chức năng | Light-ON/Dark-ON selectable |
| Truyền thông | Không |
| Vật liệu vỏ | Plastic |
| Phương pháp lắp đặt | Bracket mounting, Surface mounting |
| Phương pháp kết nối | Dây liền |
| Chiều dài cáp | 2m |
| Môi trường ánh sáng | Incandescent lamp: 3,000 lx max, Sunlight: 10,000 lx max |
| Môi trường hoạt động | Chống nước, Chịu dầu |
| Nhiệt độ môi trường | -25…55°C |
| Độ ẩm môi trường | 35…85% |
| Khối lượng tương đối | 50g |
| Đường kính tổng thể | 18mm |
| Chiều dài tổng thể (trừ phần cáp) | 41mm |
| Cấp bảo vệ | IP67, IP69K |
| Tiêu chuẩn | CE |
| Models | Mô tả |
|---|---|
| E3FA-BN11 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BN12 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BN21 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-BN22 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-BP11 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BP12 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BP21 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-BP22 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-DN11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DN12 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DN13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DN21 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-DN22 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-DN23 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-DP11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DP12 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DP13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DP21 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-DP22 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-DP23 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-RN11 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RN12 2M | Coaxial Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0 to 500 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RN21 | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-RP11 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RP12 2M | Coaxial Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0 to 500 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RP21 | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-RP22 | Coaxial Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0 to 500 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-TN11 2M | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-TN21 | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-TP11 2M | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-TP21 | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| Thương hiệu | Omron |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Điện áp ngõ vào | 12V, 24V |
| Ngõ ra | PNP |
| Khoảng cách phát hiện | 100mm |
| Series | Omron E3F |
