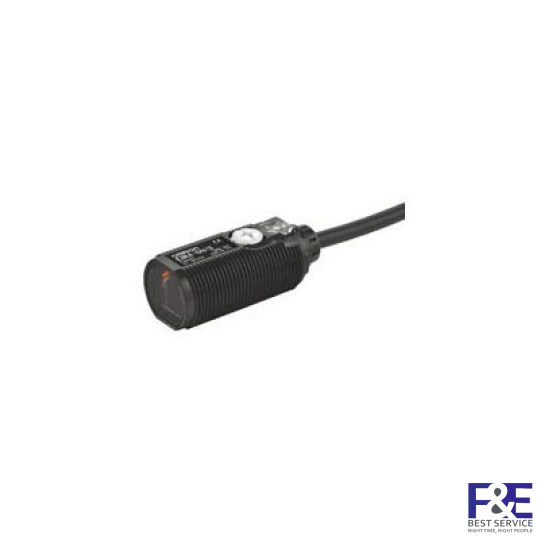

Cảm biến quang Omron E3FA-TP11 2M (thu phát)
Mã sản phẩm: E3FA-TP11 2M
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm)
| Models | Mô tả |
|---|---|
| E3FA-BN11 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BN12 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BN21 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-BN22 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-BP11 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BP12 2M | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-BP21 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 100 to 500 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-BP22 | Transparent detected with P-opaquing function, Sensing distance When using the E39-RP1: 0.1 to 2 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-DN11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DN12 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DN13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DN21 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-DN22 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-DN23 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-DP11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DP12 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DP13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-DP21 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-DP22 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-DP23 | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 1 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-RN11 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RN12 2M | Coaxial Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0 to 500 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RN21 | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-RP11 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RP12 2M | Coaxial Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0 to 500 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-RP21 | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0.1 to 4 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-RP22 | Coaxial Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1S: 0 to 500 mm, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| E3FA-TN11 2M | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-TN21 | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, NPN, M12 connector models, Red LED (624 nm) |
| E3FA-TP11 2M | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3FA-TP21 | Through-beam type, Sensing distance 20 m, Light-ON/Dark-ON selectable, PNP, M12 connector models, Red LED (624 nm) |
| Thương hiệu | Omron |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Điện áp ngõ vào | 12V, 24V |
| Ngõ ra | PNP |
| Khoảng cách phát hiện | 20m |
| Series | Omron E3F |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
