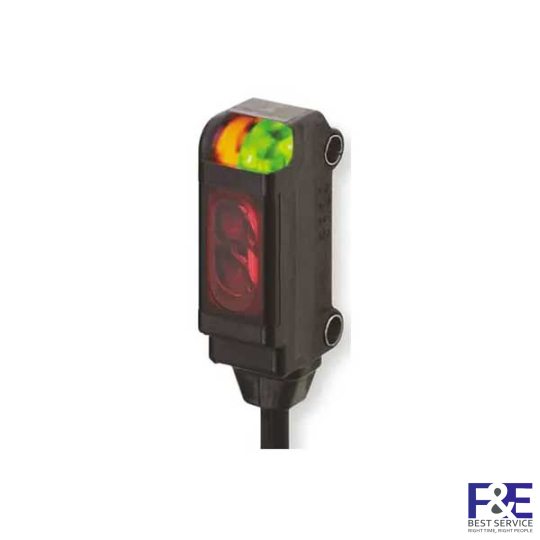

Cảm biến quang Omron E3T-SL23 2M (Thu phát chung)
Mã sản phẩm: E3T-SL23 2M
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
| Model | E3T-SL23 2M |
| Nguồn cấp | 12…24VDC |
| Phương pháp phát hiện | Thu-phát chung |
| Khoảng cách phát hiện | 5…30mm |
| Loại đầu ra | PNP |
| Chế độ hoạt động | Light ON |
| Loại | Cảm biến quang Tiêu chuẩn (tích hợp bộ khuếch đại) |
| Hình dáng | Hình chữ nhật |
| Nguyên lý phát hiện | Convergent |
| Đối tượng phát hiện | Vật mờ, đục |
| Kích thước vật phát hiện Tiêu chuẩn | 50x50mm |
| Nguồn sáng | LED đỏ |
| Cài đặt độ nhạy | Không |
| Thời gian đáp ứng | 1ms |
| Kiểu hiển thị | Hiển thị LED |
| Mạch bảo vệ | Output short-circuit protection, Power supply reverse polarity protection, Output reverse polarity protection |
| Chức năng | Mutual interference prevention |
| Vật liệu vỏ | Plastic |
| Phương pháp lắp đặt | Bracket mounting, Surface mounting |
| Phương pháp kết nối | Dây liền |
| Chiều dài cáp | 2m |
| Môi trường ánh sáng | Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max |
| Môi trường hoạt động | Chống nước |
| Nhiệt độ môi trường | -25…55°C |
| Độ ẩm môi trường | 35…85% |
| Khối lượng tương đối | 20g |
| Chiều rộng tổng thể | 7mm |
| Chiều cao tổng thể | 24.5mm |
| Chiều sâu tổng thể | 11mm |
| Cấp bảo vệ | IP67 |
| Tiêu chuẩn | CE |
| Model Number | Description |
|---|---|
| E3T-CD11 2M | Diffuse-reflective, Sensing distance 3 to 50 mm, Top view, NPN output, Light-ON |
| E3T-CD13 2M | Diffuse-reflective, Sensing distance 3 to 50 mm, Top view, PNP output, Dark-ON |
| E3T-CT12 2M | Through-beam type, Sensing distance 1 m, Top view, NPN output, Dark-ON |
| E3T-CT14 2M | Through-beam type, Sensing distance 1 m, Top view, PNP output, Light-ON |
| E3T-CT22S 2M | Through-beam type, Sensing distance 500 mm, Side view, NPN output, Dark-ON |
| E3T-CT24S 2M | Through-beam type, Sensing distance 500 mm, Side view, PNP output, Light-ON |
| E3T-FD11 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FD11 5M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FD11M 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-FD11M 5M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-FD12 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FD12 5M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FD12M 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-FD12M 5M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-FD13 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FD13 5M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FD13M 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-FD14 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FD14 5M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FD14M 2M | Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-FL11 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL12 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL13 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL14 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL21 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL22 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL23 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FL24 2M | BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT11 2M | Through-beam type, Sensing distance 500 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT11 5M | Through-beam type, Sensing distance 500 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FT11F 2M | Through-beam type, Sensing distance 500 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT12 2M | Through-beam type, Sensing distance 500 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT12 5M | Through-beam type, Sensing distance 500 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FT12F 2M | Through-beam type, Sensing distance 500 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT13 2M | Through-beam type, Sensing distance 500 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT13 5M | Through-beam type, Sensing distance 500 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FT13F 2M | Through-beam type, Sensing distance 500 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT14 2M | Through-beam type, Sensing distance 500 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT14 5M | Through-beam type, Sensing distance 500 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FT14F 2M | Through-beam type, Sensing distance 500 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT21 2M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT21F 2M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT22 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT22 5M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FT22F 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT23 2M | Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT23F 2M | Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-FT24 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-FT24 5M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-FT24F 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-SL11 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL11 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL11M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL11M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL12 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL12 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL12M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL12M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL13 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL13 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL13M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL13M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL14 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL14 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL14M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL14M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL21 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL21 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL21M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL21M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL22 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL22 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL22M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL22M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL23 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL23 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL23M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SL23M 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-SL24 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SL24 5M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SL24M 2M | Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-SR41 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SR41 5M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SR42 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SR42 5M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SR43 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SR43 5M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-SR44 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-SR44 5M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST11 2M | Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST11 5M | Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST11F 2M | Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST11M 2M | Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST11M 5M | Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-ST11MF 2M | Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST12 2M | Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST12 5M | Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST12F 2M | Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST12M 2M | Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST12M 5M | Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-ST12MF 2M | Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST13 2M | Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST13 5M | Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST13F 2M | Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST13M 2M | Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST13M 5M | Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-ST13MF 2M | Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST14 2M | Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST14 5M | Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST14F 2M | Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST14M 2M | Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST14M 5M | Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-ST14MF 2M | Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST21 2M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST21 5M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST21F 2M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST21M 2M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST21M 5M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-ST21MF 2M | Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST22 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST22F 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST22M 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST22M 5M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) |
| E3T-ST22MF 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST23 2M | Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST23F 2M | Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST23M 2M | Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST23MF 2M | Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST24 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST24 5M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST24F 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST24M 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) |
| E3T-ST24MF 2M | Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) |
| E3T-ST31 2M | Through-beam type, Sensing distance 2 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST31 5M | Through-beam type, Sensing distance 2 m, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST31F 2M | Through-beam type, Sensing distance 2 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST32 2M | Through-beam type, Sensing distance 2 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST32 5M | Through-beam type, Sensing distance 2 m, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST32F 2M | Through-beam type, Sensing distance 2 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST33 2M | Through-beam type, Sensing distance 2 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST33 5M | Through-beam type, Sensing distance 2 m, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST33F 2M | Through-beam type, Sensing distance 2 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| E3T-ST34 2M | Through-beam type, Sensing distance 2 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) |
| E3T-ST34 5M | Through-beam type, Sensing distance 2 m, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) |
| E3T-ST34F 2M | Through-beam type, Sensing distance 2 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) |
| Thương hiệu | Omron |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Series | Omron E3T |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
CÔNG TY TNHH F&E
