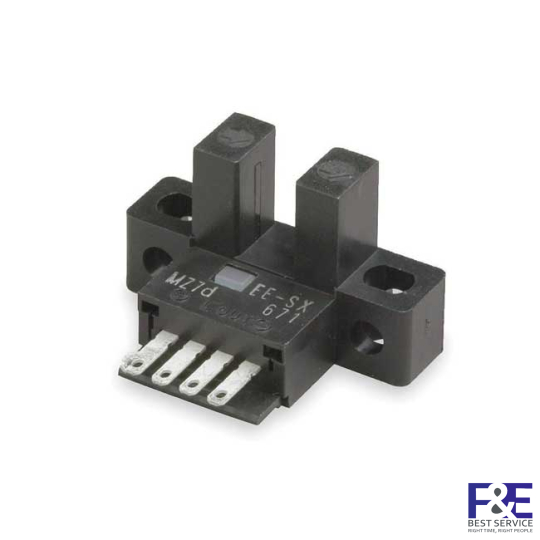

Cảm biến quang Omron EE-SX671-WR 1M (thu phát)
Mã sản phẩm: EE-SX671-WR 1M
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Non-modulated Through-beam type, Grooved Type (L-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
| Loại | Photoelectric fork sensor |
| Hình dáng | L micro type |
| Phương pháp phát hiện | Through-beam (Full set) |
| Khoảng cách phát hiện | 5mm |
| Đối tượng phát hiện | Opaque |
| Kích thước vật phát hiện tiêu chuẩn | 2×0.8mm |
| Nguồn sáng | Infrared |
| Nguồn cấp | 5…24VDC |
| Chiều rộng khe/rãnh | 5mm |
| Chiều sâu khe/rãnh | 9mm |
| Số trục quang | 1 |
| Tần số đóng/mở | 1kHz |
| Cài đặt độ nhạy | No |
| Loại đầu ra | NPN |
| Chế độ hoạt động | Dark ON, Light ON |
| Kiểu hiển thị | LED indicator |
| Mạch bảo vệ | No |
| Chức năng | Light-ON/Dark-ON selectable |
| Truyền thông | No |
| Vật liệu vỏ | Plastic |
| Phương pháp kết nối | Pre-wired |
| Chiều dài cáp | 1m |
| Môi trường ánh sáng | Fluorescent lamp: 1,000 lx max. |
| Môi trường hoạt động | Standard |
| Nhiệt độ môi trường | -25…55°C |
| Độ ẩm môi trường | 5…85% |
| Khối lượng tương đối | 17.3g |
| Chiều rộng tổng thể | 20.7mm |
| Chiều cao tổng thể | 26.2mm |
| Chiều sâu tổng thể | 15.5mm |
| Cấp bảo vệ | IP50 |
| Tiêu chuẩn | CE, UL |
| Phụ kiện đi kèm | Not equipped |
| Phụ kiện mua rời | No |
| Model Number | Description |
|---|---|
| EE-SX470 | Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator |
| EE-SX471 | Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator |
| EE-SX472 | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator |
| EE-SX473 | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator |
| EE-SX474 | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator |
| EE-SX670 | Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX670-WR 1M | Non-modulated Through-beam type, Grooved Type (Standard), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX670A | Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light |
| EE-SX670P | Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX670P-WR 1M | Non-modulated Through-beam type, Grooved Type (Standard), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX670R | Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light |
| EE-SX671 | Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX671-WR 1M | Non-modulated Through-beam type, Grooved Type (L-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX671A | Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light |
| EE-SX671P | Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX671P-WR 1M | Non-modulated Through-beam type, Grooved Type (L-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX671R | Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light |
| EE-SX672 | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX672-WR 1M | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX672A | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light |
| EE-SX672P | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX672P-WR 1M | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX672R | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light |
| EE-SX673 | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX673-WR 1M | Non-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX673A | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light |
| EE-SX673P | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX673P-WR 1M | Non-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX673R | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light |
| EE-SX674 | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX674-WR 1M | Non-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX674A | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light |
| EE-SX674P | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX674P-WR 1M | Non-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX674R | Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light |
| EE-SX675 | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX675-WR 1M | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX675P | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX675P-WR 1M | Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX676 | Non-modulated Through-beam type, Grooved Type (F-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX676-WR 1M | Non-modulated Through-beam type, Grooved Type (F-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX676P | Non-modulated Through-beam type, Grooved Type (F-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX676P-WR 1M | Non-modulated Through-beam type, Grooved Type (F-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX677 | Non-modulated Through-beam type, Grooved Type (R-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX677-WR 1M | Non-modulated Through-beam type, Grooved Type (R-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator |
| EE-SX677P | Non-modulated Through-beam type, Grooved Type (R-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| EE-SX677P-WR 1M | Non-modulated Through-beam type, Grooved Type (R-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator |
| Thương hiệu | Omron |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Điện áp ngõ vào | 12V, 24V, 5V |
| Khoảng cách phát hiện | 5mm |
| Ngõ ra | NPN |
| Series | Omron EE-SX47 / SX67 |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
