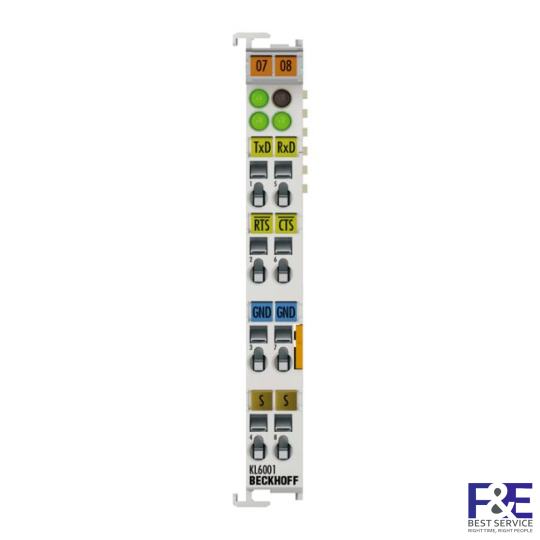

Cầu nối tín hiệu ngõ vào Beckhoff KL6001

SKU: KL6001
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	KL6001, KS6001
Technology	RS232
Data transfer channels	2 (1/1), TxD and RxD, full duplex
Data transfer rates	1200…19,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit
Bit distortion	< 3 %
Line impedance	–
Cable length	max. 15 m
“0” signal voltage	-18…-3 V
“1” signal voltage	3…18 V
Power supply	via the K-bus
Current consumption K-bus	typ. 55 mA
Current consumption power contacts	– (no power contacts)
Electrical isolation	500 V (K-bus/signal voltage)
Data buffer	128 bytes receive buffer, 16 bytes transmit buffer
Bit width in the process image	input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible)
Configuration	no address setting, configuration via Bus Coupler or controller
Special features	high interference immunity, electrically isolated signals
Weight	approx. 80 g
Operating/storage temperature	0…+55 °C/-25…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL, ATEX
Ex marking	II 3 G Ex nA IIC T4 Gc
