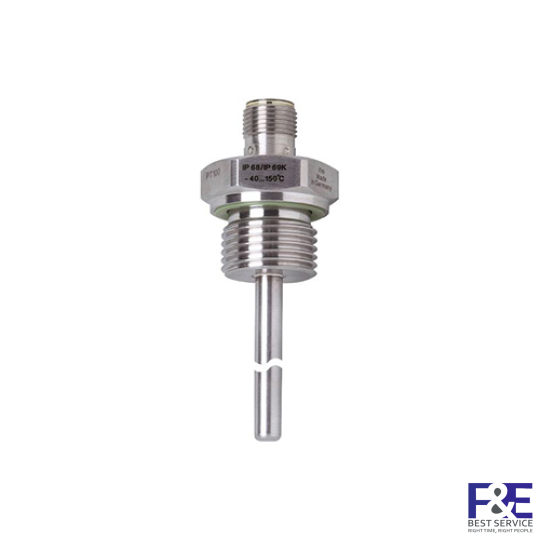

Đầu dò nhiệt độ IFM TM4411
SKU: TM4411
Hãng sản xuất: IFM
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Product characteristics | |||
|---|---|---|---|
| Measuring range |
| ||
| Process connection | threaded connection G 1/2 | ||
| Installation length EL [mm] | 50 | ||
| Application | |||
| Special feature | Gold-plated contacts | ||
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) | ||
| Media | liquids and gases | ||
| Pressure rating [bar] | 250 | ||
| Minimum installation depth [mm] | 15 | ||
| Electrical data | |||
| Protection class | III | ||
| Measuring/setting range | |||
| Probe length L [mm] | 36 | ||
| Measuring range |
| ||
| Accuracy / deviations | |||
| Accuracy [K] | ± (0,15 K + 0,002 x |t|) | ||
| Response times | |||
| Dynamic response T05 / T09 [s] | 1 / 3; (to DIN EN 60751) | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25…80 | ||
| Storage temperature [°C] | -40…100 | ||
| Protection | IP 68; IP 69K | ||
| Mechanical data | |||
| Weight [g] | 127.5 | ||
| Materials | stainless steel (1.4404 / 316L) | ||
| Materials (wetted parts) | stainless steel (1.4404 / 316L); FKM | ||
| Process connection | threaded connection G 1/2 | ||
| Probe diameter [mm] | 6 | ||
| Installation length EL [mm] | 50 | ||
| Remarks | |||
| Remarks |
| ||
| Pack quantity | 1 pcs. | ||
| Electrical connection | |||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||
| Thương hiệu | IFM |
|---|---|
| Thời gian bảo hành | 5 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
