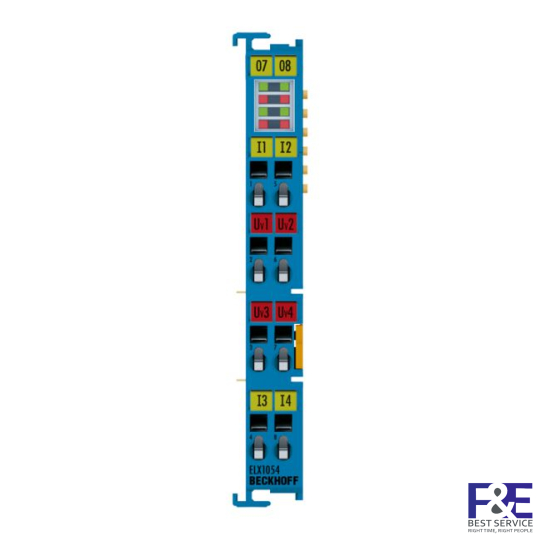

ELX1054 | EtherCAT Terminal, 4-channel digital input, NAMUR, Ex i
SKU: ELX1054
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | ELX1054 |
|---|---|
| Technology | digital input |
| Specification | NAMUR (IEC 60947-5-6) |
| Number of inputs | 4 |
| Connection method | 2-wire |
| Open circuit voltage | typ. 8.2 V DC |
| “0” signal current | ? 1.2 mA |
| “1” signal current | ? 2.1 mA |
| Switching hysteresis | typ. 200 µA |
| Short-circuit current | typ. 7 mA |
| Fault detection | I ? 200 µA (cable break), I ? 6.3 mA (short circuit) |
| Max. switching frequency | typ. 5 kHz (duty factor 50 %) |
| Supply voltage electronics | 24 V DC (via power contacts), ELX9560 power supply |
| Current consumption power contacts | typ. 15 mA + load |
| Current consumption E-bus | typ. 70 mA |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/see documentation |
| Approvals/markings | CE, UL, ATEX, IECEx, cFMus, CCC |
| Ex marking | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I cFMus: AIS Class I, II, III, Division 1, Groups A thru G Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC T4 |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
