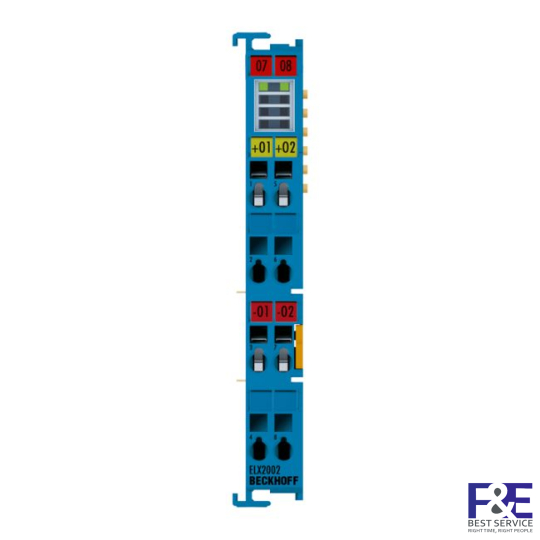

ELX2002 | EtherCAT Terminal, 2-channel digital output, 24 V DC, 45 mA, Ex i

SKU: ELX2002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	ELX2002
Technology	current output
Connection technology	2-wire
Number of outputs	2
Rated load voltage	24 V DC, R_i = 254 ?
Load type	ohmic, inductive, capacitive
Supply voltage electronics	24 V DC (via power contacts), ELX9560 power supply
Max. output current	45 mA per channel, ? 80 mA
Current consumption power contacts	typ. 10 mA + load
Current consumption E-bus	typ. 45 mA
Weight	approx. 55 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/see documentation
Approvals/markings	CE, UL, ATEX, IECEx, cFMus, CCC
Ex marking	ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I cFMus: AIS Class I, II, III, Division 1, Groups A thru G Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC T4
