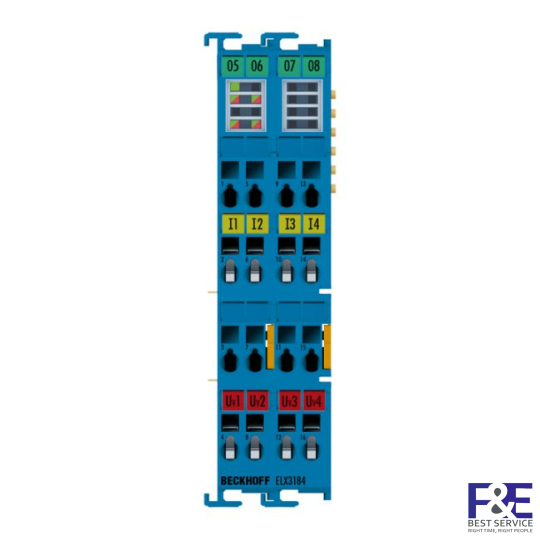

ELX3184 | EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, HART, Ex i
SKU: ELX3184
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | ELX3184 |
|---|---|
| Technology | Current input |
| Signal current | 4…20 mA |
| Number of inputs | 4 (single-ended) |
| Connection method | 2-wire |
| Resolution | 16 bit (incl. sign) |
| Measuring error | < ±0.3 % (relative to full scale value) |
| Internal resistance | typ. 250 ? |
| Supply voltage electronics | 24 V DC (via power contacts), ELX9560 power supply |
| Current consumption power contacts | typ. 20 mA + load |
| Current consumption E-bus | typ. 60 mA |
| Distributed clocks | yes |
| Special features | standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR |
| Weight | approx. 90 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP20/see documentation |
| Approvals/markings | CE, ATEX, IECEx |
| Ex marking | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I |
