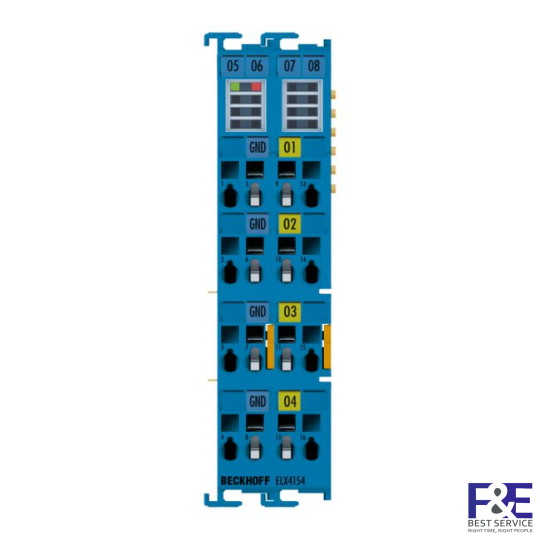

ELX4154 | EtherCAT Terminal, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, Ex i

SKU: ELX4154
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	ELX4154
Technology	current output
Signal current	0/4…20 mA
Number of outputs	4 (single-ended)
Connection method	2-wire
Load	400 ?
Output error	< 0.1 % (relative to end value)
Resolution	16 bit (incl. sign)
Conversion time	typ. 1 ms
Supply voltage electronics	24 V DC (via power contacts), ELX9560 power supply
Current consumption power contacts	typ. 21 mA + 0.8 x load
Current consumption E-bus	typ. 60 mA
Distributed clocks	yes
Special features	parameterizable watchdog, activatable user calibration
Weight	approx. 100 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 20/see documentation
Approvals/markings	CE, ATEX, IECEx, cFMus, CCC
Ex marking	ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
