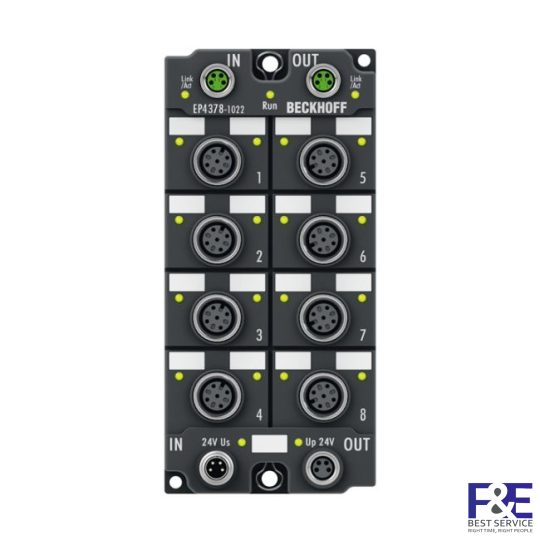

EP4378-1022 | EtherCAT Box, 4-channel analog input + 4-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

SKU: EP4378-1022
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	EP4378-1022
Protocol	EtherCAT
Bus interface	2 x M8 socket, shielded, screw type
Number of outputs	4 x analog, 8 x digital
Number of inputs	4 x analog, 8 x digital
Input/output connections	M12, screw type
Signal type	-10/0…+10 V \| -20/0/4…+20 mA, parameterizable per channel
Load	output: > 5 k? \| 350 ?
Internal resistance	input: > 200 k? \| typ. 85 ? + diode voltage
Resolution	16 bit
Conversion time	input: ~ 100 µs, output: ~ 40 µs
Measuring error	input: < 0.3 %, output: < 0.1 % (each relative to full scale value)
Actuator supply	from the auxiliary voltage UP, max. 0.5 A, total short-circuit proof
Power supply connection	feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation	500 V
Current consumption from US	120 mA
Special features	combi module, current or voltage parameterizable per channel
Weight	approx. 250 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
