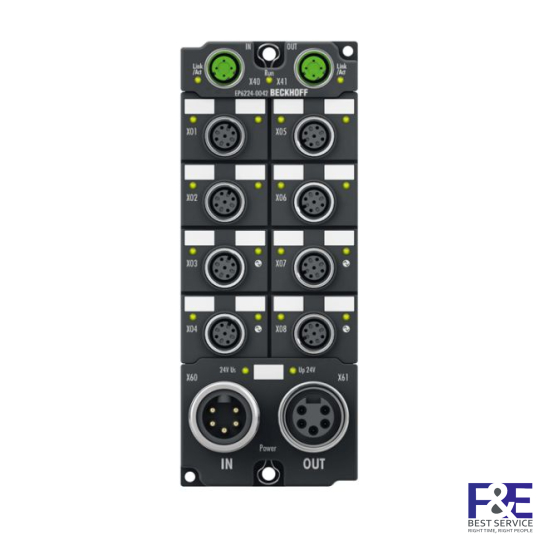

EP6224-0042 | EtherCAT Box, 4-channel communication interface + 8-channel digital input, IO-Link, master, Class A, M12
SKU: EP6224-0042
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EP6224-0042 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M12 socket, 4-pin (D-coded) |
| Data transfer rates | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| Specification version | IO-Link V1.1, Class A |
| IO-Link interfaces | 4 |
| Connection method | M12, screw type |
| Number of inputs | 8 additional digital inputs |
| Nominal input voltage | 24 V DC (-15 %/+20 %) |
| Input filter | 3.0 ms |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 11…30 V, 6 mA input current (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| IO-Link sensor supply L+ | 24 V DC, 1.4 A per port, ? 5.6 A for 4 ports |
| IO-Link extra power P24 | – |
| Current consumption from US | typ. 130 mA + load |
| Power supply connection | feed: 1 x 7/8″ plug, 5-pin; downstream connection: 1 x 7/8″ socket, 5-pin |
| Distributed clocks | yes |
| Electrical isolation | 500 V |
| Weight | approx. 440 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL in preparation |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
