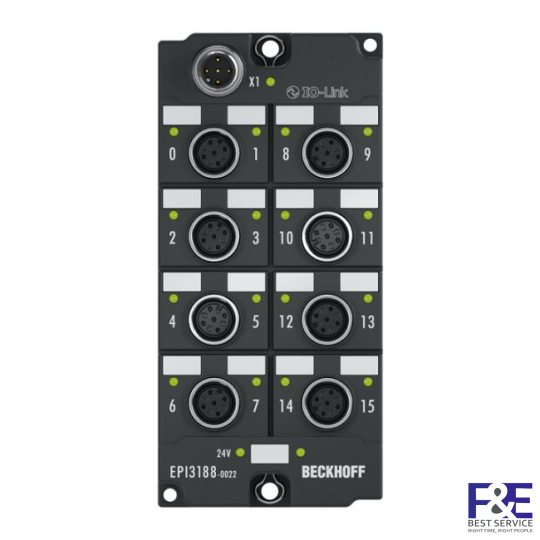

EPI3188-0022 | IO-Link box, 8-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12
SKU: EPI3188-0022
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EPI3188-0022 |
|---|---|
| Communication | IO-Link |
| Interfaces | 1 x M12 plug, A-coded |
| Data transfer rates | 230.4 kbaud (COM 3) |
| Specification version | IO-Link V1.1, Class B |
| Number of inputs | 8 (single-ended) |
| Input connections | M12, screw type |
| Signal type | -10/0…+10 V | 0/4…20 mA, parameterizable per channel |
| Internal resistance | > 200 k? | typ. 85 ? + diode voltage |
| Common-mode voltage UCM | max. 35 V |
| Resolution | 16 bit (incl. sign) |
| Measuring error | < ±0.3 % (relative to full scale value) |
| Conversion time | ~ 100 µs |
| Input filter limit frequency | 5 kHz |
| Input filter | configurable |
| Sensor supply | from additional power supply P24 |
| Current consumption | typ. 100 mA from L+ |
| Electrical isolation | L+/P24: yes |
| Special features | current or voltage parameterizable (0/4…20 mA, -10/0…10 V) |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Weight | approx. 250 g |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
