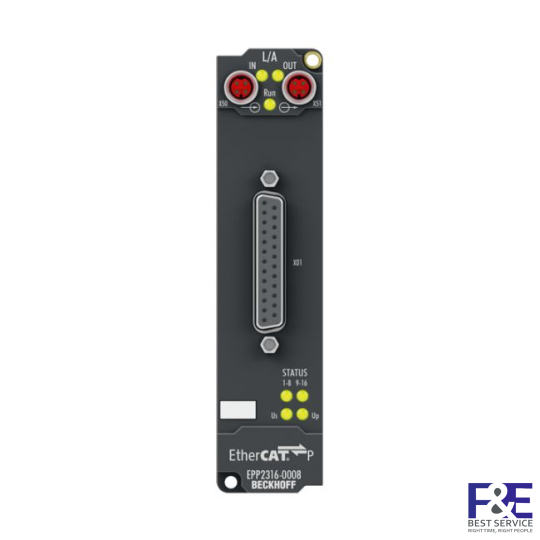

EPP2316-0008 | EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, D-sub

SKU: EPP2316-0008
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	EPP2316-0008
Protocol	EtherCAT
Bus interface	2 x M8 socket, shielded, screw type, P-coded
Specification	EN 61131-2, type 1/3
Number of channels	8 inputs + 8 outputs
Input/output connections	D-sub socket, 25-pin, UNC4-40
Input filter	10 µs
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15 %/+20 %)
Max. output current	0.5 A per channel, individually short-circuit proof
Short-circuit current	typ. 1.5 A
Auxiliary power current	typ. 20 mA
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Special features	ideal for high number of channels
Weight	approx. 165 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings	CE, UL
Protect. class/installation pos.	IP 65/66/67 (conforms to EN 60529)/variable
