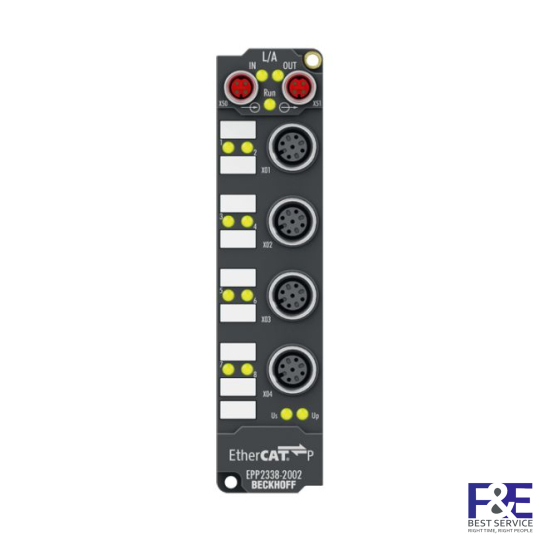

EPP2338-2002 | EtherCAT P Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

SKU: EPP2338-2002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	EPP2338-2002
Protocol	EtherCAT
Bus interface	2 x M8 socket, shielded, screw type, P-coded
Specification	EN 61131-2, type 1/3
Number of channels	8 digital inputs or outputs
Input/output connections	M12, screw type
Input filter	10 µs
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply	from load supply voltage US
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15 %/+20 %)
Max. output current	0.5 A per channel, individually short-circuit proof
Short-circuit current	typ. 1.5 A
Auxiliary power current	typ. 20 mA
Current consumption from US	typ. 100 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation	500 V
Weight	approx. 165 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings	CE, UL
Protect. class/installation pos.	IP 65/66/67 (conforms to EN 60529)/variable
