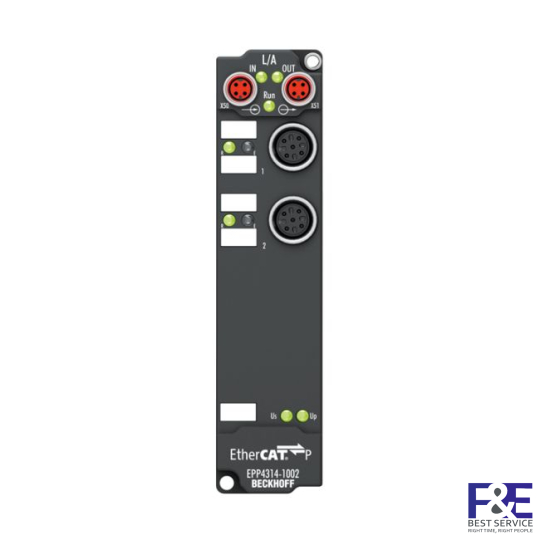

EPP4314-1002 | EtherCAT P Box, 2-channel analog input + 2-channel analog output, multi-function, ±20 mA, 16 bit, differential, M12
SKU: EPP4314-1002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EPP4314-1002 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, shielded, screw type, P-coded |
| Number of outputs | 2 |
| Number of inputs | 2 x analog, 2 x digital |
| Input/output connections | M12, screw type |
| Signal type | -20/0/4…+20 mA, parameterizable per channel |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Load | output: < 500 ? |
| Internal resistance | input: 85 ? typ. + diode voltage |
| Resolution | 16 bit |
| Conversion time | input: ~ 100 µs, output: ~ 40 µs |
| Measuring error | input: < 0.3 %, output: < 0.1 % (each relative to full scale value) |
| Electrical isolation | 500 V |
| Current consumption from US | 120 mA |
| Special features | combi module, current parameterizable per channel |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
