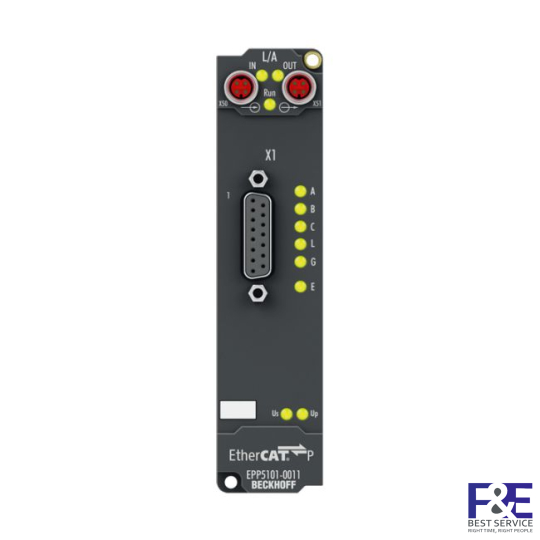

EPP5101-0011 | EtherCAT P Box, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz, D-sub
SKU: EPP5101-0011
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EPP5101-0011 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, shielded, screw type, P-coded |
| Technology | incremental encoder interface, differential (RS422), single ended (TTL), counter, pulse generator |
| Encoder type | incremental encoder |
| Number of channels | 1 |
| Connection encoder/sensor | D-sub socket, 15-pin |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Sensor supply | +5 V DC, 150 mA (VCC) |
| Counter | 32 or 16 bit, binary |
| Limit frequency | 4 million increments/s (with 4-fold evaluation) |
| Quadrature decoder | 4-fold evaluation |
| Zero-pulse latch | 16/32 bit |
| Commands | read, set, enable |
| Distributed clocks | yes |
| Current consumption from US | typ. 100 mA |
| Electrical isolation | 500 V |
| Weight | approx. 165 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, UL |
| Protect. class/installation pos. | IP 65/66/67 (conforms to EN 60529)/variable |
