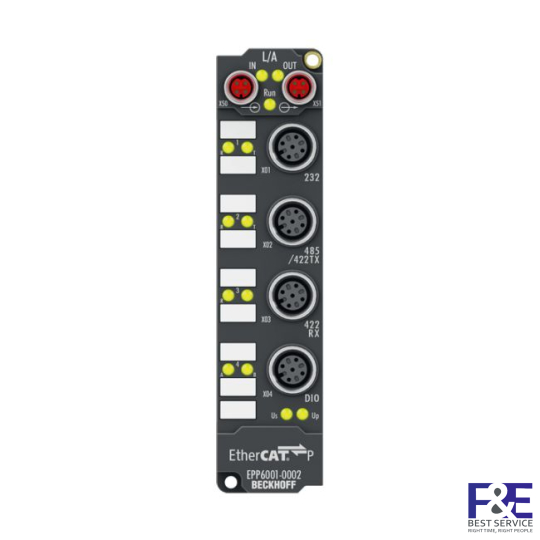

EPP6001-0002 | EtherCAT P Box, 1-channel communication interface, serial, RS232/RS422/RS485, M12

SKU: EPP6001-0002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	EPP6001-0002
Protocol	EtherCAT
Bus interface	2 x M8 socket, shielded, screw type, P-coded
Data transfer channels	1
Interfaces	individual selectable from RS232, RS485, RS422
Data transfer rates	300…115,200 baud; 9600 baud (8 bit, no parity, 1 stop bit) is preset
Communication	TxD and RxD, full duplex
Bit distortion	< 3 %
Cable length	RS232: max. 15 m; RS422/RS485: approx. 1000 m
Data buffer	864 bytes receive buffer, 128 bytes transmit buffer
Sensor supply	+5 V DC, 1 A
Connection method	M12, screw type
Number of channels	2 (1/1), TxD and RxD, full duplex
Number of outputs	2 (digital 24 V DC)
Number of inputs	2 digital 24 V inputs
Input filter	10 µs (for digital inputs)
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 6 mA input current (EN 61131-2, type 3)
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15 %/+20 %)
Max. output current	0.5 A per channel, individually short-circuit proof
Short-circuit current	typ. 1.5 A
Nominal voltage	24 V DC (-15 %/+20 %)
Distributed clocks	–
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Weight	approx. 165 g
Special features	easy integration of serial end devices
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
