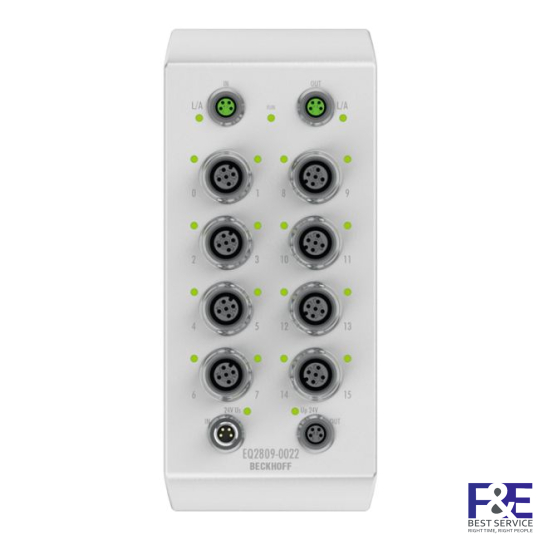

EQ2809-0022 | EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, stainless steel
SKU: EQ2809-0022
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EQ2809-0022 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, shielded, screw type |
| Number of outputs | 16 |
| Rated load voltage | 24 V DC (-15 %/+20 %) |
| Output connections | M12, screw type |
| Load type | ohmic, inductive, lamp load |
| Nominal output voltage | 24 V DC (-15 %/+20 %) |
| Max. output current | 0.5 A per channel, individually short-circuit proof, ? 4 A |
| Short-circuit current | typ. 1.5 A |
| Distributed clocks | – |
| Current consumption from US | typ. 130 mA |
| Auxiliary power current | typ. 20 mA + load |
| Power supply connection | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Electrical isolation | 500 V |
| Special features | stainless steel, Hygienic Design |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 69K (according to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
