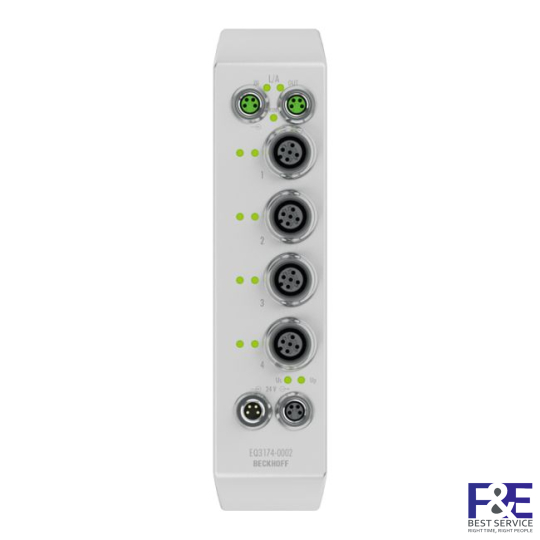

EQ3174-0002 | EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, stainless steel
SKU: EQ3174-0002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EQ3174-0002 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, shielded, screw type |
| Number of inputs | 4 |
| Input connections | M12, screw type |
| Signal type | -10/0…+10 V | 0/4…20 mA, parameterizable per channel |
| Internal resistance | > 200 k? | typ. 85 ? + diode voltage |
| Common-mode voltage UCM | max. 35 V |
| Resolution | 16 bit (incl. sign) |
| Measuring error | < ±0.3 % (relative to full scale value) |
| Conversion time | ~ 100 µs |
| Input filter limit frequency | 5 kHz |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Distributed clocks | yes |
| Input filter | configurable |
| Sensor supply | from load supply voltage UP |
| Current consumption from US | 120 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Electrical isolation | 500 V |
| Special features | stainless steel, Hygienic Design |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 69K (according to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
