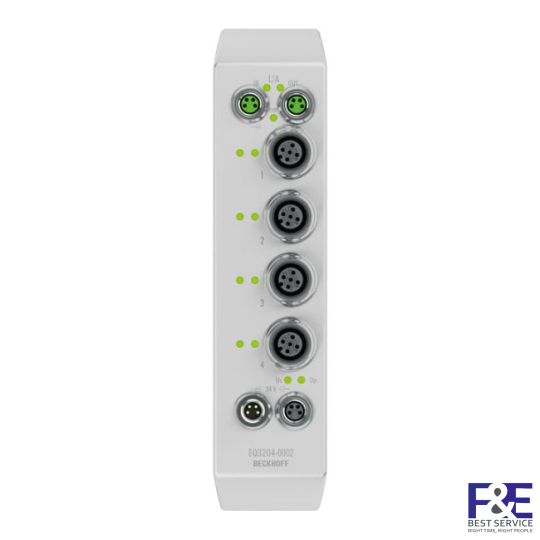

EQ3204-0002 | EtherCAT Box, 4-channel analog input, temperature, RTD (Pt100), 16 bit, M12, stainless steel
SKU: EQ3204-0002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | EQ3204-0002 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, shielded, screw type |
| Number of inputs | 4 |
| Input connections | M12, screw type |
| Connection method | screw type M12 for 2-, 3- and 4-wire connections, presetting: 2-wire |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 ?…1.2/4 k?) |
| Signal type | Pt100 |
| Measuring range | -200…+850 °C (Pt sensors); -60…+250 °C (Ni sensors) |
| Resolution | 0.1 °C per digit |
| Measuring error | < ±0.5 °C (Pt sensors in 4-wire connection) |
| Conversion time | 800 ms up to 2 ms, see documentation, default: approx. 85 ms |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| Distributed clocks | – |
| Measuring current | typ. 0.5 mA |
| Input filter | 5 variations, configurable |
| Current consumption from US | 120 mA |
| Power supply connection | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Electrical isolation | 500 V |
| Special features | stainless steel, Hygienic Design |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 69K (according to EN 60529)/variable |
| Approvals/markings | CE, UL |
