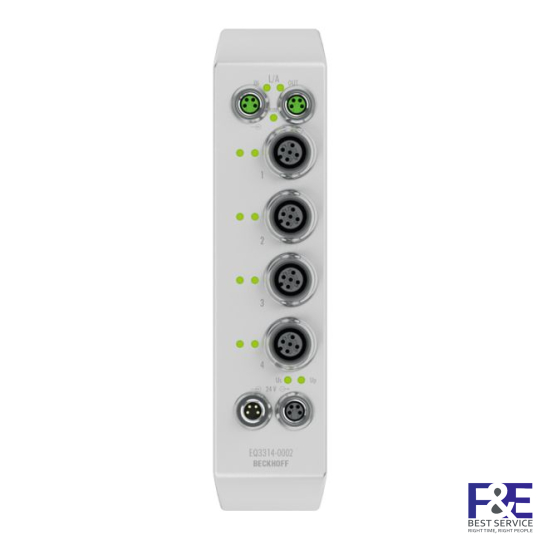

EQ3314-0002 | EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12, stainless steel

SKU: EQ3314-0002
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Technical data	EQ3314-0002
Protocol	EtherCAT
Bus interface	2 x M8 socket, shielded, screw type
Number of inputs	4
Connection method	screw type M12, 2-wire connection for thermocouple
Sensor types	types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement
Signal type	thermocouple
Measuring range	depending on sensor type; preset value is type K, -100…+1370 °C
Resolution	0.1 °C per digit
Measuring error	< ±0.3 % for type K (relative to full scale value; further types see documentation)
Conversion time	2.5 s up to 20 ms, see documentation, default: approx. 250 ms
Distributed clocks	–
Input filter	5 variations, configurable
Current consumption from US	120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation	500 V
Special features	stainless steel, Hygienic Design
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.	IP 69K (according to EN 60529)/variable
Approvals/markings	CE, UL
