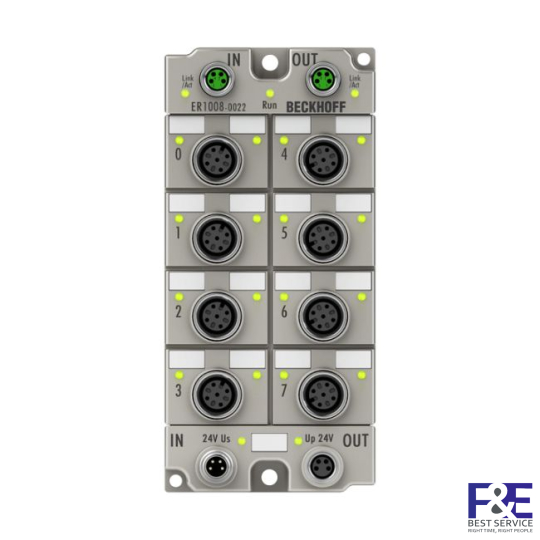

ER1008-0022 | EtherCAT Box, 8-channel digital input, 24 V DC, 3 ms, M12, zinc die-cast
SKU: ER1008-0022
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | ER1008-0022 |
|---|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, shielded, screw type |
| Specification | EN 61131-2, type 1/3 |
| Number of inputs | 8 |
| Input connections | M12, screw type |
| Nominal input voltage | 24 V DC (-15 %/+20 %) |
| Input filter | 3.0 ms |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Distributed clocks | – |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Power supply connection | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Current consumption from US (without sensor current) | 120 mA |
| Electrical isolation | 500 V |
| Special features | 1 input per M12 plug |
| Weight | approx. 450 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
