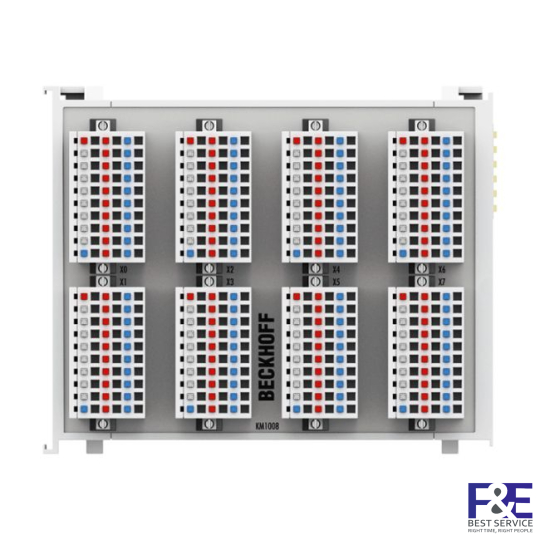

KM1008 | Bus Terminal module, 64-channel digital input, 24 V DC, 3 ms
SKU: KM1008
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | KM1008 |
|---|---|
| Connection technology | plug |
| Specification | EN 61131-2, type 1 |
| Number of inputs | 64 (8 x 8) |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 15…30 V |
| Input filter | typ. 3.0 ms |
| Input current | typ. 5 mA |
| Current consumption K-bus | typ. 3 mA |
| Current consumption power contacts | – (no power contacts) |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 64 inputs |
| Configuration | no address or configuration setting |
| Dimensions (W x H x D) | 123 mm x 100 mm x 55 mm |
| Weight | approx. 310 g with 1-pin connector, approx. 390 g with 3-pin connector |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP20/variable |
| Approvals/markings | CE |
