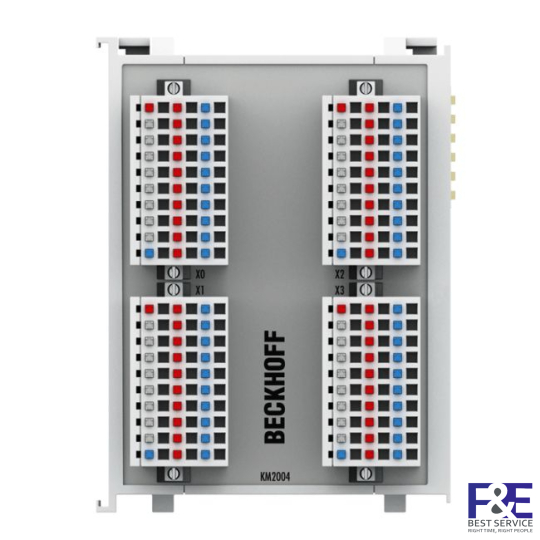

KM2004 | Bus Terminal module, 32-channel digital output, 24 V DC, 0.5 A
SKU: KM2004
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT
| Technical data | KM2004 |
|---|---|
| Connection technology | plug |
| Number of outputs | 32 (4 x 8) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | < 2 A |
| Breaking energy | < 150 mJ/channel |
| Reverse voltage protection | yes |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | – (no power contacts) |
| Current consumption K-bus | typ. 5 mA |
| Bit width in the process image | 32 outputs |
| Dimensions (W x H x D) | 75 mm x 100 mm x 55 mm |
| Weight | approx. 90 g with 1-pin connector, approx. 110 g with 3-pin connector |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP20/variable |
| Approvals/markings | CE |
| Thương hiệu | Beckhoff |
|---|---|
| Thời gian bảo hành | 1 Năm |
| Yêu cầu tư vấn | (+84)911031155(Call/Zalo) |
